MIPEX Interface Board

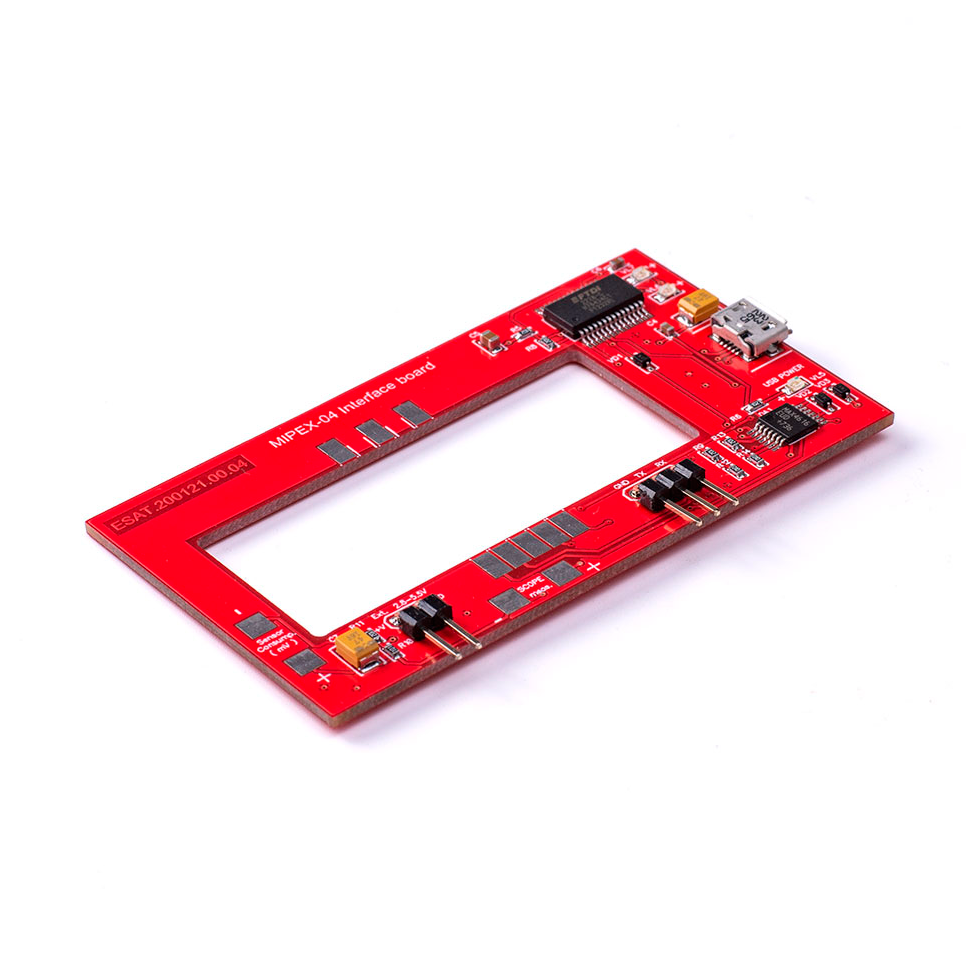

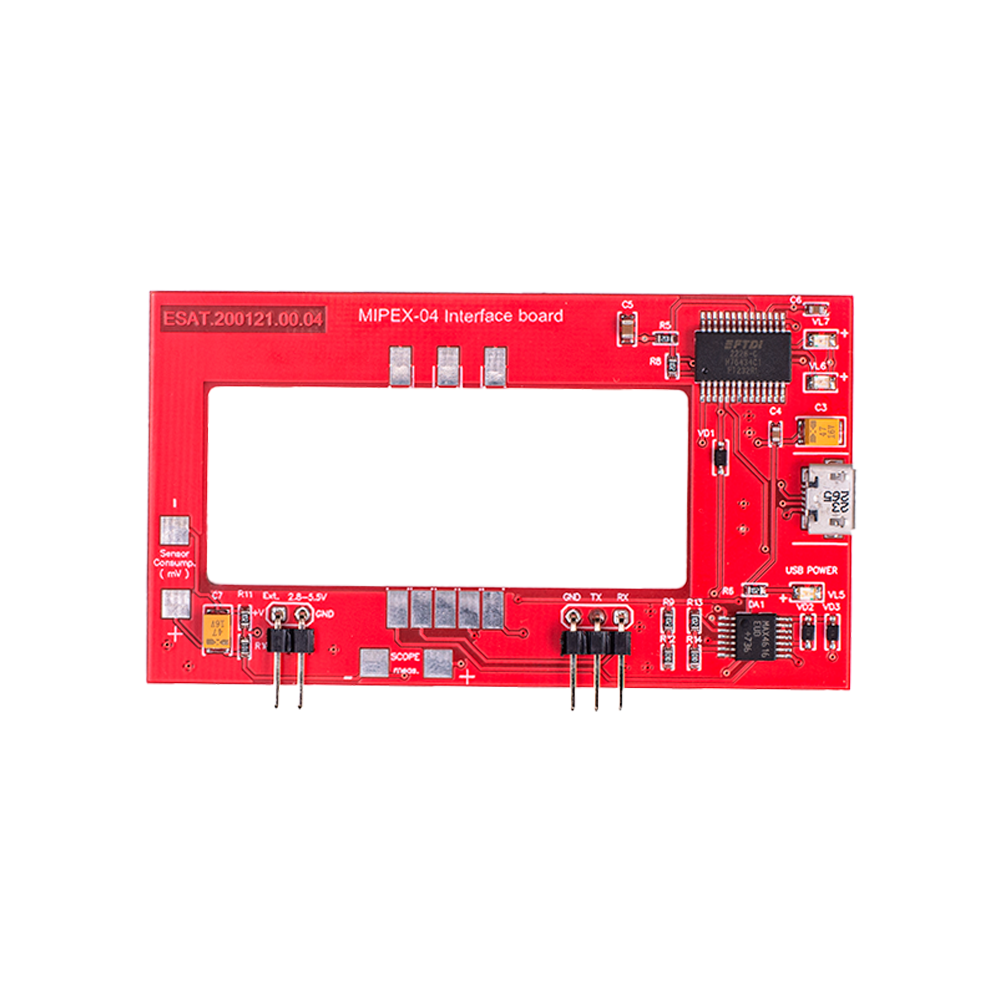

MIPEX Interface Board for MIPEX 04 and MIPEX 04 ppm

The universal MIPEX-04 interface board is standardized for MIPEX-04 sensors and included in the MIPEX Evaluation Kit. USB power supply eliminates the need for external sources, and UART support enables integration with automated systems.

CONTACT FOR DETAILS Get an offer

Features

The MIPEX Interface Board serves as the central element of the test bench for calibration and verification of MIPEX-04 infrared gas sensors. It enables data transmission between the sensor and a PC. When used together with gas supply adapters and the MIPEX ETS software, it supports a full testing cycle in laboratory or production environments.

Technical SPECIFICATIONS

The MIPEX-04 interface board enables high-precision data communication with NDIR sensors. It connects to a PC via USB or, optionally, via UART with 3.3V sensor power supply. The board automatically detects the available COM port in the system. When used with MIPEX ETS software, it supports full-scale calibration (zero and span), real-time data visualization, log saving, and data transmission to technical support.

ADVANTAGES:

Plug & Test: USB-powered, no external power blocks required
Hybrid connectivity: USB and UART with external 3.3V power supply
Current monitoring: dedicated test points for sensor current measurement (external device required)
Standardized design: full compatibility with MIPEX-04; backward-compatible with MIPEX-02 when used in the Evaluation Kit


	Parameter	Value
	Product type	Accessory
	Compatibility	MIPEX-04, MIPEX-14
	Connection	USB; UART with external 3.3 V power
	Power Supply	USB 5 V, up to 500 mA
	Current Measurement	Yes (requires external measurement unit)
	Operating Temperature	–40 to +60 °C
	Dimensions	75 × 42.1 × 1.5 mm
	Mounting	Ø3 mm screw holes
	Features	Auto port detection; MIPEX ETS optimized
