About US
MGS Technology is a global leader in ultra-low power gas sensing solutions. We produce NDIR gas sensors for methane, hydrocarbons and carbon dioxide. Our energy consumption is significantly lower than that of closest competitors, being as low as 0.04 mW.

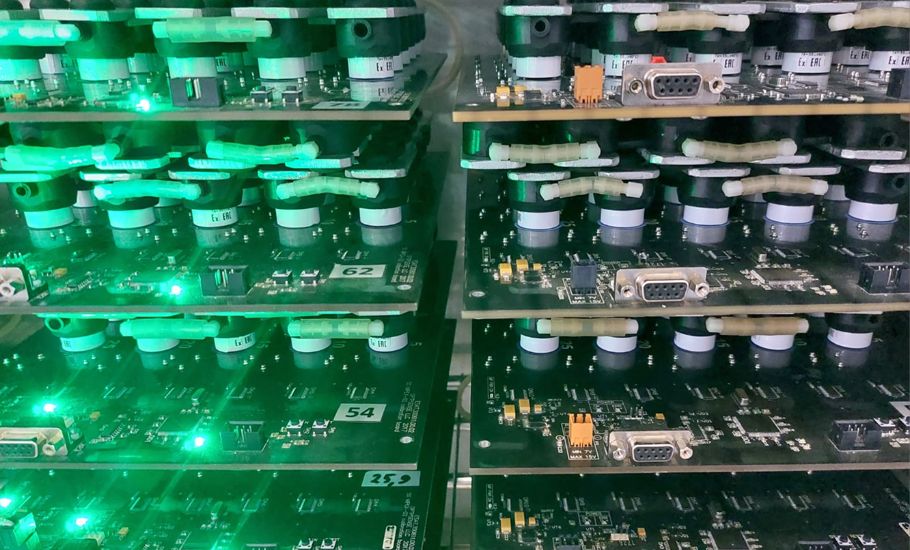

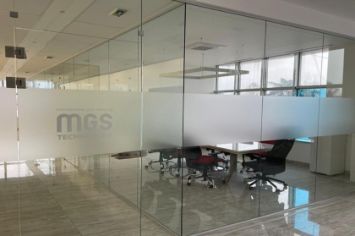

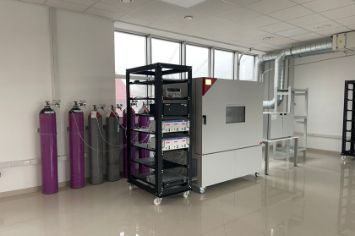

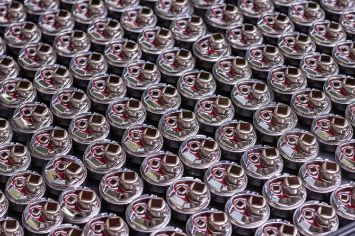

Our annual production volume exceeds hundreds of thousands units as millions of MIPEX sensors are already operating in portable and stationary gas detectors produced by leading manufacturers worldwide. Our production facilities are located in Serbia and the EU (Latvia).
The sensors have been certified for compliance with IEC, ATEX and CSA standards for use in equipment intended to operate in potentially explosive atmospheres.
-
World's lowest power consumption
-
Smart controller, digital interface
-
«ia»
Intrinsic safety
ATEX/IEC/CSA -
Long-term measurement stability - over 10 years
ABOUT NDIR TECHNOLOGY

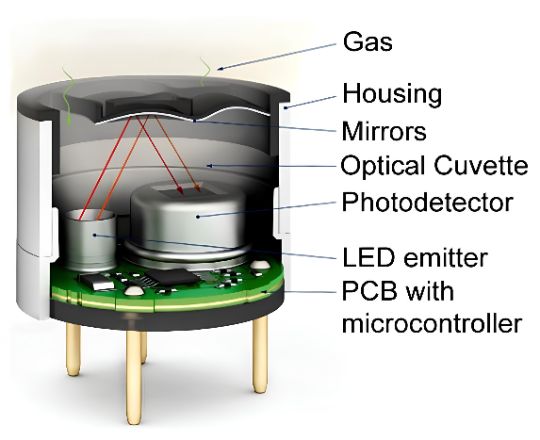

Dual-wavelength NDIR technology stands behind the performance of ultra-low power gas sensing. MIPEX infrared sensors contain a spectrum-optimized LED, an optical system and a photodetector with a unique thin film design. An integrated smart controller with temperature compensation and data linearization algorithms ensures long-term stability of sensor readings across the full operating range: 10+ years of maintenance-free operation with no sensitivity drift. The UART digital interface is used for sensor communication.
The technology used in MIPEX sensors retains the advantages of ultra-low power consumption and consistent high metrological performance, while simultaneously avoiding the inherent problems of thermocatalytic and conventional optical sensors. Resistance to external factors, including catalytic poisons, makes MIPEX sensors ideal for use in harsh environments. Solid-state IR transmitter and detector utilized in MIPEX sensors provide high vibration resistance, which is important in underground mines.
ABOUT APPLICATION
The defining characteristic of the MIPEX sensors is power consumption as low as 0.04 mW which enables OEM manufacturers to build battery-powered gas detection devices with years of autonomous operation. This makes MIPEX the ideal sensor core for IoT and IIoT applications: remote monitoring nodes, wireless alarm systems, compact wearable detectors, and infrastructure-free deployments. The use of MIPEX sensors enables expansion of application boundaries and functional capabilities of stationary gas detectors and gas analysis systems, development and introduction of wireless, autonomous instruments and systems, including those providing a long operating period without additional maintenance.
MIPEX sensors measure hydrocarbons across ppm and LEL ranges simultaneously which is suitable for early leak detection and emission monitoring.
NDIR Gas Sensors

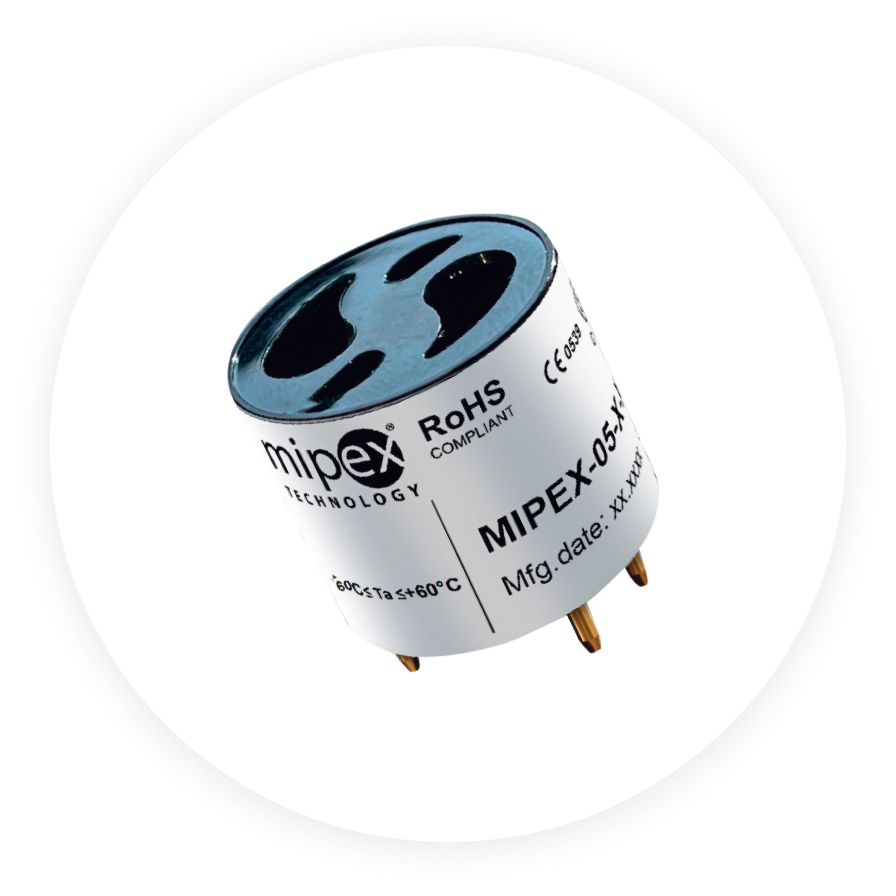

MIPEX-05 [CH4|C3H8|CO2]
The outstanding ultra-low power consumption of 0.2 mW allows the MIPEX-05 in standard housing to be used effectively in the manufacture of customized portable gas devices and wireless measurement systems for the monitoring of combustible methane, hydrocarbons and CO₂ gases with long battery life. Its power consumption is 10 times lower than that of the previous MIPEX-02 model.
NDIR Gas Sensors

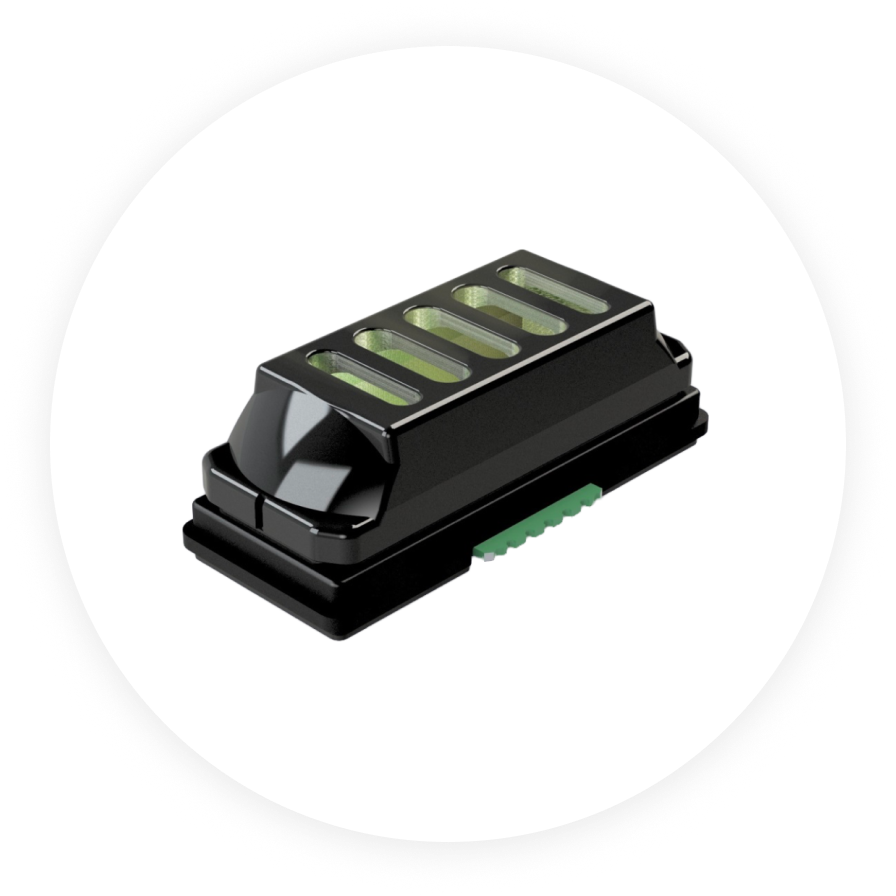

MIPEX-05 ppm [CH4|C3H8]
MIPEX-05 ppm is a high-sensitivity version of an ultra-low power infrared gas sensor in the 4th series housing with 10 ppm resolution for hydrocarbons measurement in ppm and LEL concentrations. Due to low-power consumption and high resolution, it allows battery-powered gas detectors to last years without charge and detect low concentrations.
NDIR Gas Sensors

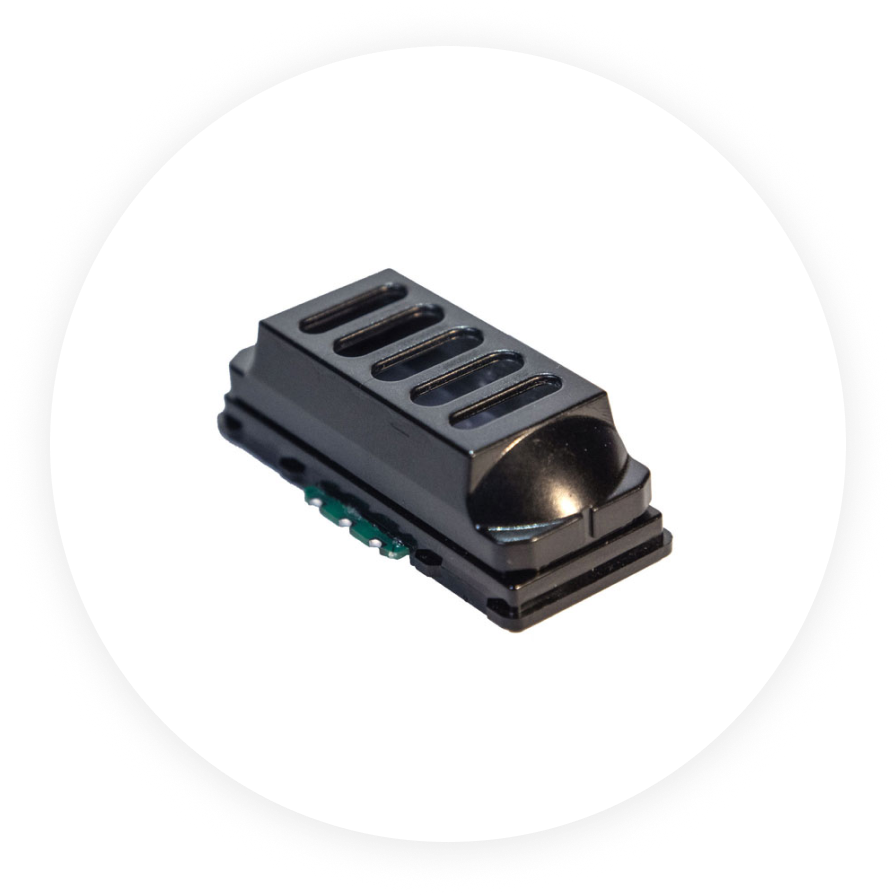

MIPEX-04 ppm [CH4|C3H8]
MIPEX-04 ppm is a high-performance NDIR sensor with 10 ppm resolution, designed to detect methane and propane at low concentrations. It is intended for automatic continuous monitoring of Threshold Limit Value (TLV) and leaks in industrial applications.
NDIR Gas Sensors
MIPEX-04 [CH4|C3H8]
MIPEX-04 sensors have been developed for use in portable individual detectors and wireless combustible gas monitoring systems. The uniquely low average power consumption of ~ 0.1 mW enables the production of autonomous instruments that do not require recharging and maintenance for up to 24 months.
In field tests
MIPEX-06 [CH4|C3H8|CO2]
MIPEX-06 is an ultra-low power infrared gas sensor in the 4th series housing with standard-pin configuration for portable devices. It is designed for automatic continuous measurement of hydrocarbons and CO₂ concentrations in hazardous areas.
NDIR Gas Sensors

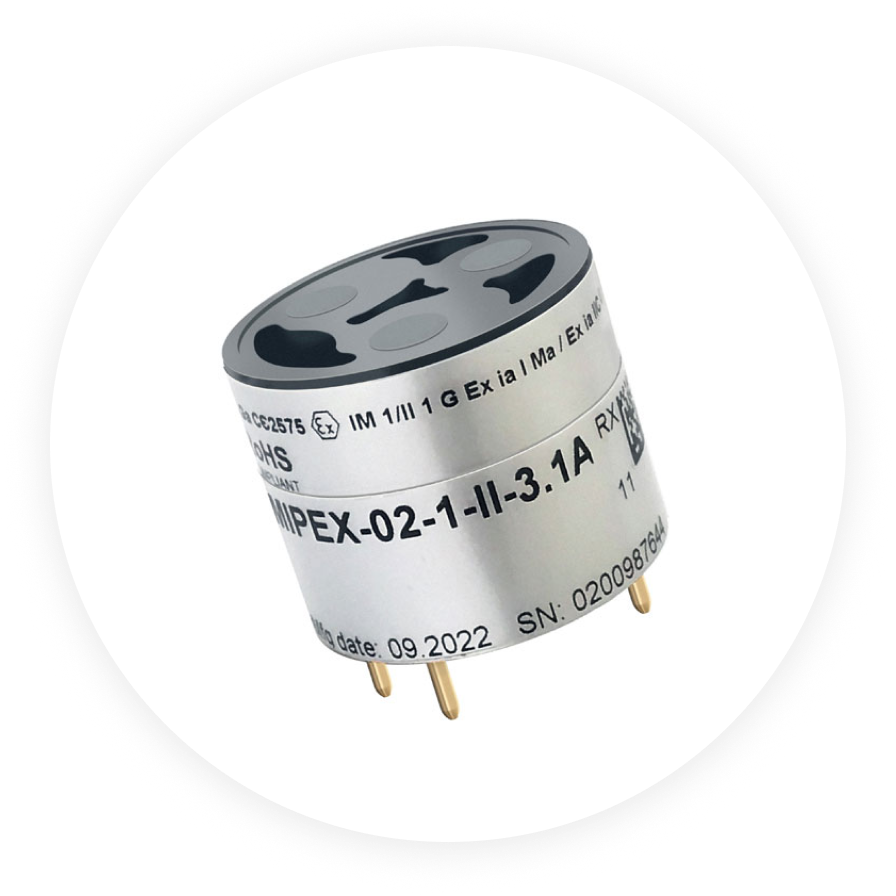

MIPEX-02 [CH4|C3H8|CO2]
Metal housing, wide temperature range, resistance to humidity and dust, optical principle of operation providing long-term reliability in aggressive operating conditions, allows MIPEX sensors to be placed as measuring elements in stationary gas detectors and gas analytical systems.
product in development

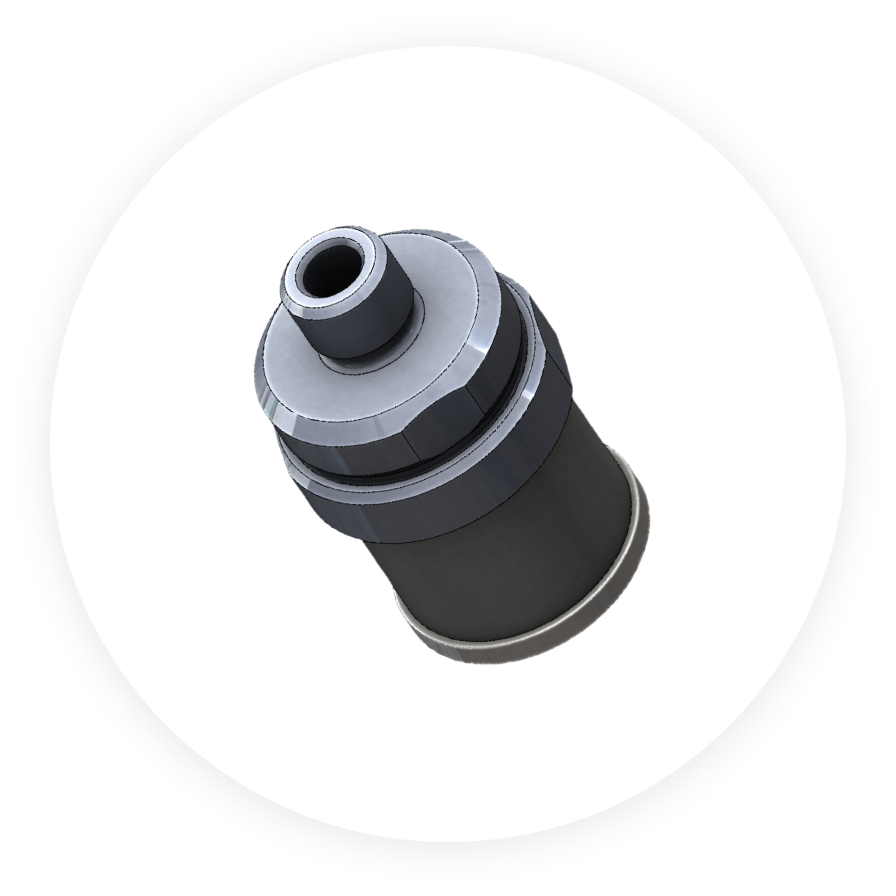

MIPEX-1F [CH4|C3H8]
The MIPEX-1F is a ready-to-use optical measuring unit for stationary gas analysis systems. The sensor provides automatic and continuous measurement of hydrocarbon gas concentrations in hazardous area atmospheres, ensuring high accuracy and stability of readings.
product in development
MIPEX-1H [CH4|C3H8|CO2]
The MIPEX-1H is a compact infrared sensor for measuring methane, propane and carbon dioxide concentrations for small and portable gas detectors. The power consumption of only 0.2 mW ensures long autonomous operation of the devices, and the minimal dimensions of 20×20×10 mm allow to significantly reduce the size of the final device.
product in development

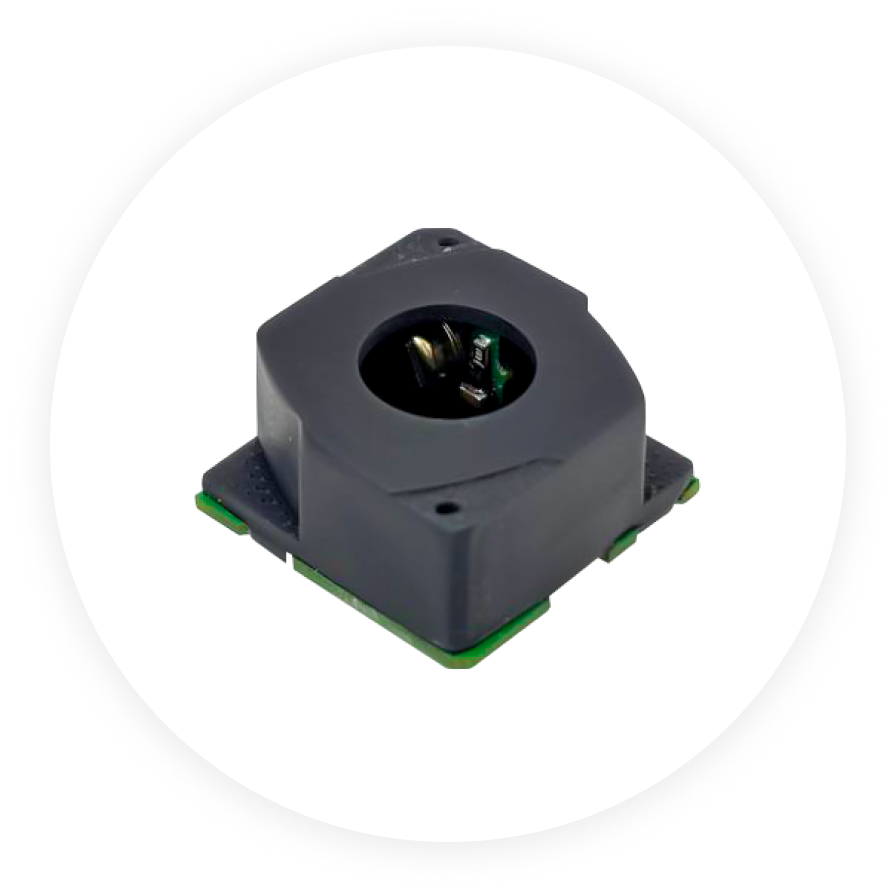

MIPEX-01S [CH4|C3H8|CO2]
MIPEX-01S is a compact infrared sensor in a Series 1 housing for automatic continuous measurement of hydrocarbons or CO₂ concentrations in harsh environments. It is designed for small-sized and portable gas detectors.
product in development
MIPEX-01D [CH4&CO2 | C3H8 & CO2]
MIPEX-01D is an ultra-low power NDIR gas sensor intended for automatic continuous measurement of CH₄ & CO₂ or C₃H₈ & CO₂ in atmosphere of hazardous areas. Its compact dimensions of 20×20×10 mm and ability to simultaneously measure the concentrations of two gases allow to significantly reduce the size of the final device.
