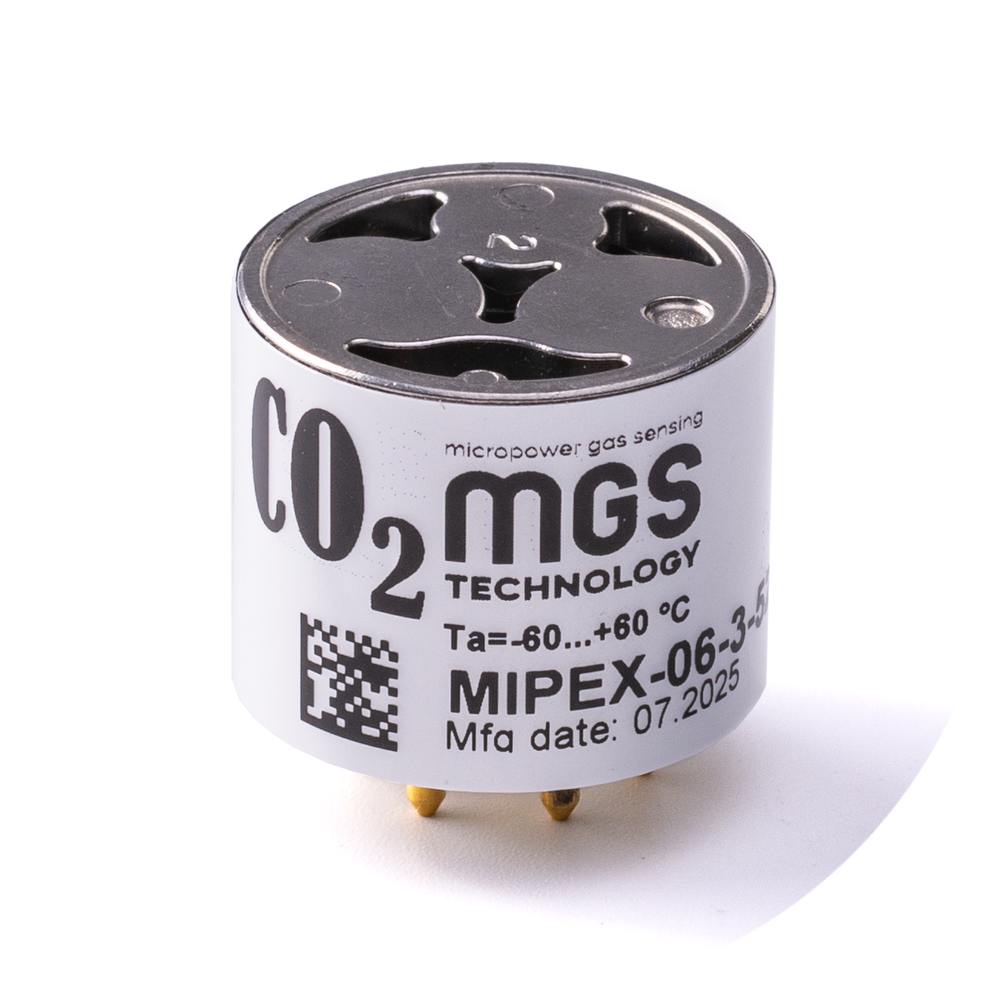

MIPEX-06 [CO2]

IN FIELD TESTS

ULTRA-LOW POWER CO2 SENSOR WITH STANDARD-PIN CONFIGURATION

MIPEX-06 [CO₂] is an ultra-low power NDIR sensor in the 4th series housing with standard-pin configuration. It is designed for automatic continuous measurement of carbon dioxide in hazardous environments.

Presentation in PDF

Contact for details Get an offer

Features

MIPEX-06 [CO₂] is developed for integration into battery-powered portable detectors and wireless fixed gas analyzers for emission monitoring and health safety. Its combination of low-power consumption and high measurement reliability allows devices to work more years autonomously without recharge, reducing financial costs and frequency of service in hard-to-reach areas.

  • Ultra-low power consumption

    Average power consumption ≤ 0.2 mW.

  • Integrated microcontroller

    Returns linearized and temperature-compensated digital output via UART interface.

  • TECHNOLOGY

    Non-dispersive infrared (NDIR) sensing founded on selective absorption of infrared light, utilizing a dual-wavelength LED-based method to minimize the effects of humidity, dust, and optical contamination.

  • Explosion-proof design

    Intrinsically safe explosion protection level “ia” in compliance with: IECEx, ATEX, UL913, CSA.

  • STANDARD 4TH SERIES SIZE

    Durable plastic housing ⌀20.1×16.6 mm with standard-pin configuration.

  • LONG-TERM MEASUREMENT STABILITY OVER 10 YEARS
