MIPEX-06 [CH4]

IN FIELD TESTS

ULTRA-LOW POWER METHANE SENSOR WITH STANDARD-PIN CONFIGURATION

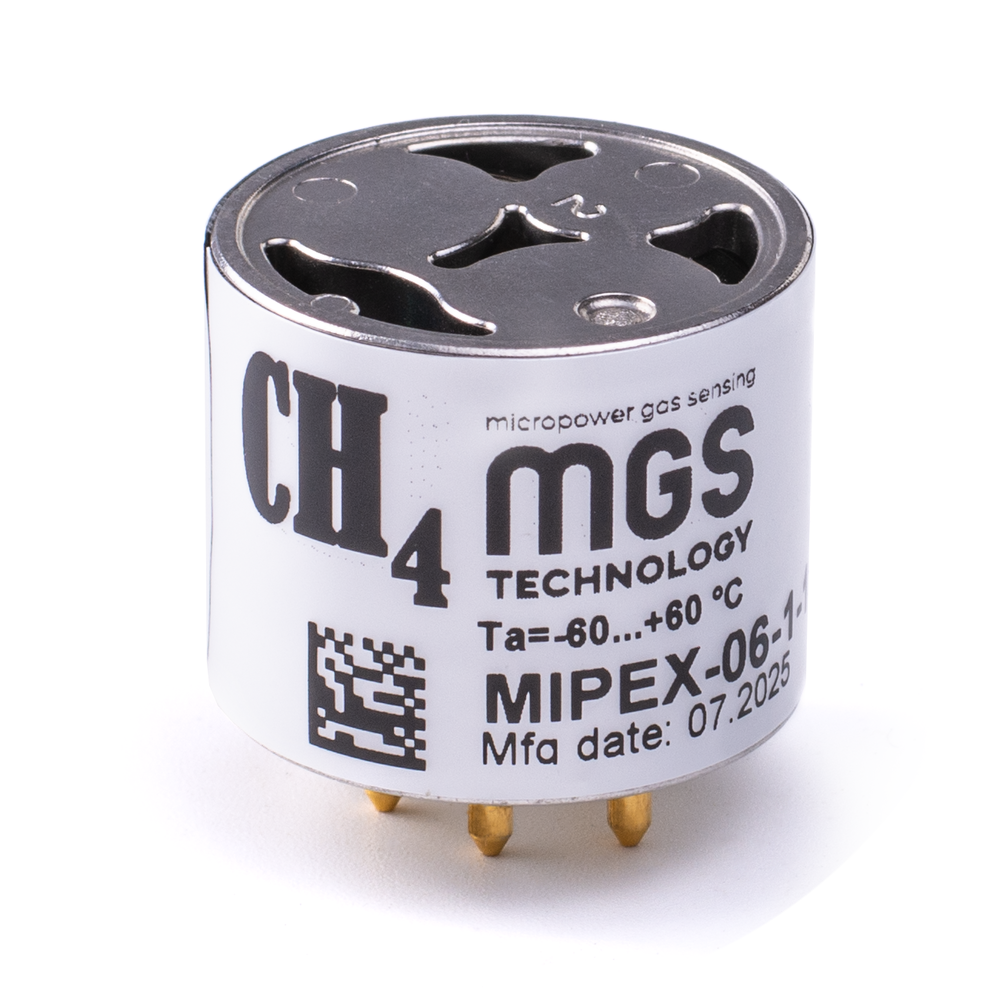

MIPEX-06 [CH₄] is an ultra-low power NDIR sensor in the 4th series housing with standard-pin configuration. It is developed for automatic continuous measurement of methane in explosive atmospheres.

Presentation in PDF

Contact for details Get an offer

Features

MIPEX-06 [CH₄] is designed for integration into portable detectors, battery-powered personal clip devices and wireless fixed gas analyzers. Its combination of low-power consumption and high measurement reliability allows detectors to work more years autonomously on a single battery reducing financial costs and frequency of service in hard-to-reach or hazardous areas.

  • ULTRA-LOW POWER CONSUMPTION

    Average power consumption ≤ 0.2 mW.

  • INTEGRATED MICROCONTROLLER

    Returns linearized and temperature-compensated digital output via UART interface.

  • TECHNOLOGY

    Non-dispersive infrared (NDIR) sensing founded on selective absorption of infrared light, utilizing a dual-wavelength LED-based method to minimize the effects of humidity, dust, and optical contamination.

  • EXPLOSION-PROOF DESIGN

    Intrinsically safe explosion protection level “ia” in compliance with: IECEx, ATEX, UL913, CSA.

  • STANDARD SERIES 4 SIZE

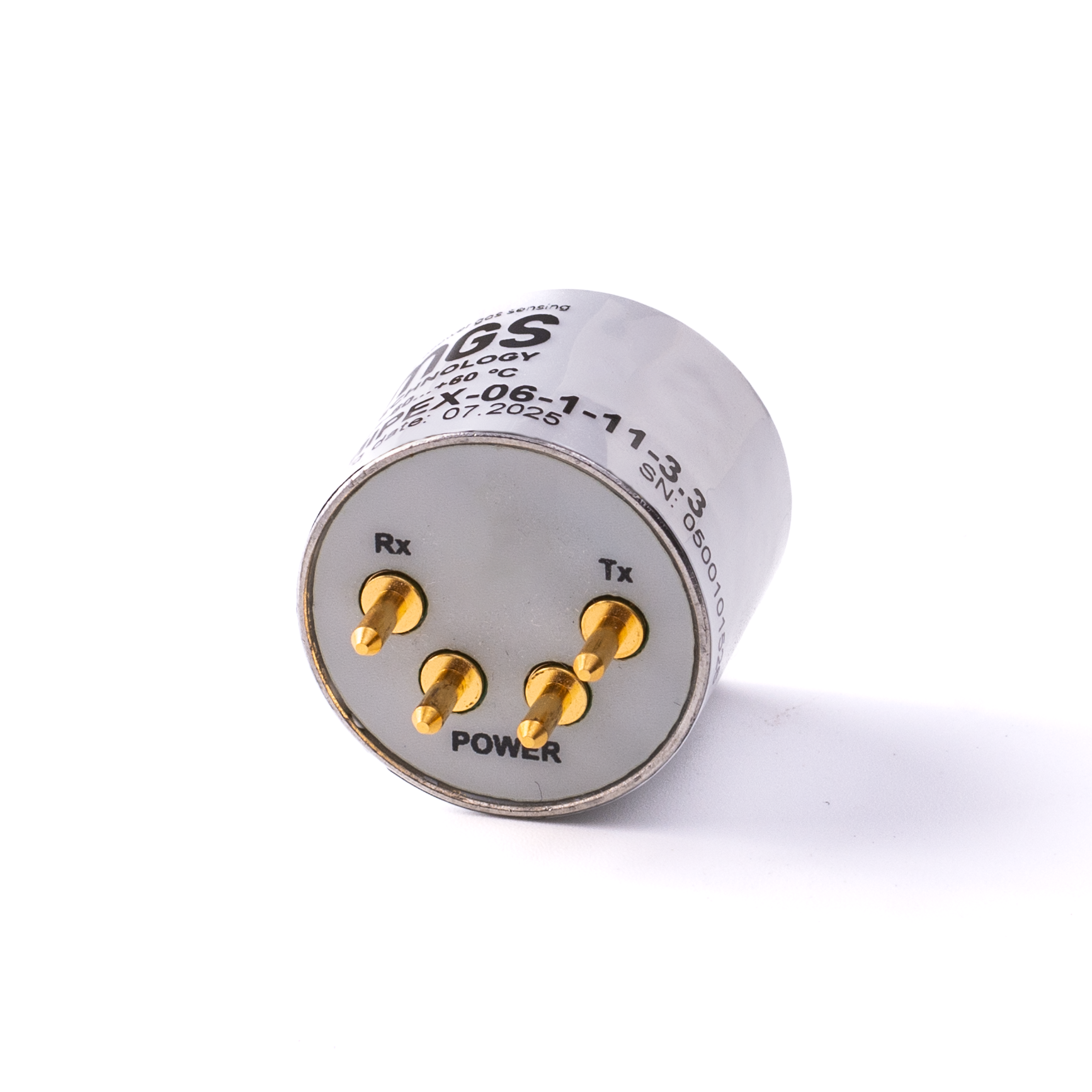

    Durable plastic housing ⌀20.1×16.6 mm with standard-pin configuration.

  • LONG-TERM MEASUREMENT STABILITY OVER 10 YEARS

Key specifications

Key parameters from the sensor datasheet. Full data and ordering codes are in the Documents section below.

Parameter Value
Target gas CH4
Measurement range 0…5; 0…100 % vol.
Accuracy (+20…+25 °C) ± 0.1% vol. or ± 5% of readings (whichever is greater)
Response time T(90) ≤ 15 s
Average current consumption ≤ 60 µA
Average power consumption ≤ 0.2 mW
Supply voltage +2.7…+5.0 V
Operating temperature -40…+75 °C
Humidity tolerance Up to 98% (without condensation)
Atmospheric pressure 80…120 kPa
Dimensions ⌀20.1×16.6 mm
Weight 7.5 g max

Documents

Datasheets

How to order

  • Minimum order: from 1 sensor.
  • Lead time: depends on stock availability, typically from 1 to 8 weeks.
  • Samples: free of charge when a project is opened under an agreement on specific conditions; otherwise paid as part of a quotation, or through the MIPEX Evaluation Kit.

Request samples Get an offer
