IN DEVELOPMENT

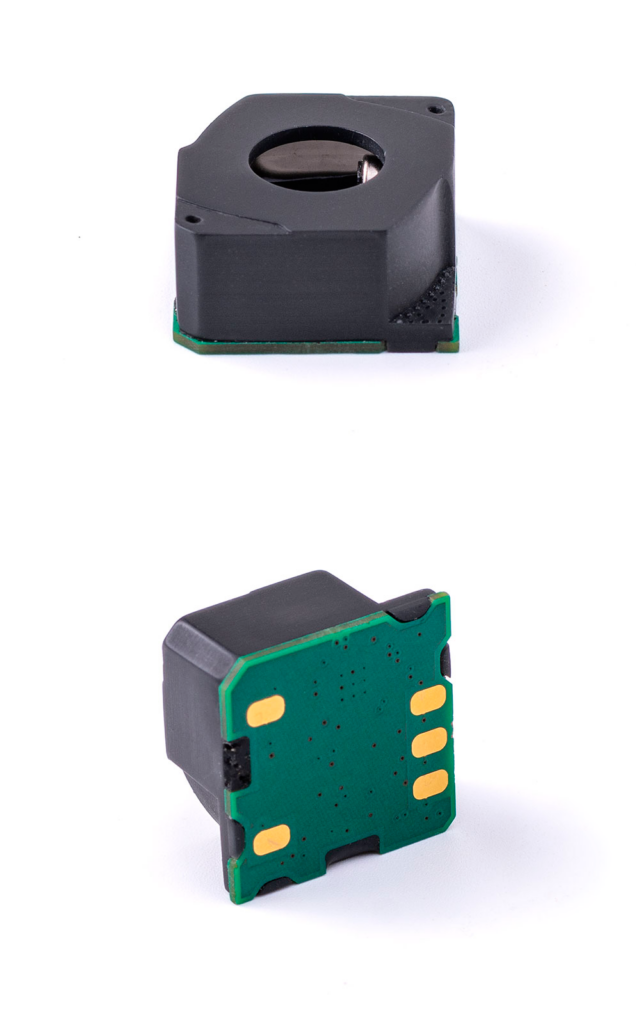

MIPEX-1H [CH₄] is a compact NDIR sensor designed for measuring methane concentrations in portable and space-constrained gas detection devices. Its ultra-low power consumption of less than 0.2 mW ensures long-term autonomous operation, making it ideal for battery-powered industrial safety systems.
Features
MIPEX-1H [CH₄] is a miniature methane sensor based on NDIR technology, developed for portable detectors used in industrial safety. Thanks to its ultra-low power consumption (less than 0.2 mW) and compact design (19.9×19.9×10 mm), the sensor enables long-term autonomous operation in battery-powered devices.
With a wide supply voltage range of 2.7 to 5.0 V, MIPEX-1H provides flexible integration into various systems. Its smart microcontroller outputs stable, linearized readings over UART and compensates for temperature changes and environmental factors such as humidity and pressure.
ADVANTAGES:
Interface:
Dimensions:
| Parameter | Value | |
| General specification | ||
| Gas sampling method: | Diffusion | |
| Operating principle: | NDIR | |
| Sensor type | CH₄ | |
| Relative humidity | up to 98%(without condensation) | |
| Atmospheric pressure, kPa | 80…120 | |
| Temperature, °C | -55...+60 | |
| Warm-up time, sec | ≤ 120 | |
| Life Time | ≥ 10 | |
| Housing material | Polycarbonate Lexan™ | |
| Overall dimensions, mm | 19.9×19.9×10 | |
| Weight, g | 10.5 | |
| Measurement specification | ||
| Measurement range, % vol. | 0…5 | |
| Variability (+20…+25 ⁰C) | ± 0.1% vol. or ± 5% of readings (whichever is greater) | |
| Response time (T90) | Without filter : 10 sec With dust filter: 20 sec | |
| Electrical specification | ||
| Operating supply voltage, VDC | +2.7…+5.0 | |
| Maximum supply voltage, VDC | +5.4 | |
| Communication interface | UART | |
| Average current, µA | 65 max | |
| Peak current, mA | 2 max | |
| Sensor is designed in compliance with: | IEC 60079-0, IEC 60079-11 EN IEC 60079-0 / EN 60079-11 UL913, CAN/CSA-C22.2 No. 157-92 |
