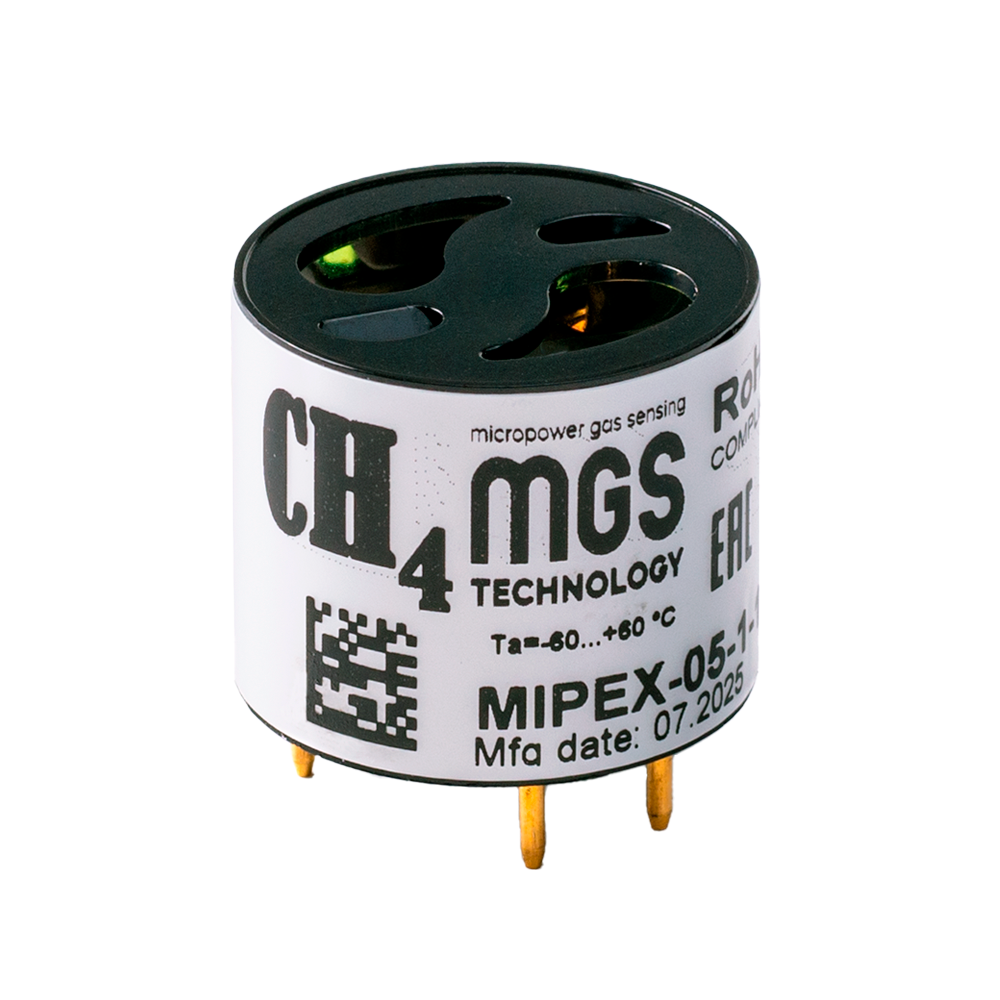

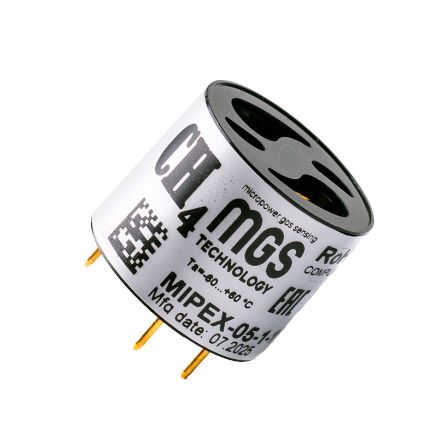

MIPEX-05 [CH₄] is an ultra-low power NDIR gas sensor designed for accurate and continuous methane detection in explosive atmospheres. Compact and energy-efficient, it is ideal for use in portable gas detectors and wireless safety systems.
The MIPEX-05 [CH₄] sensor combines ultra-low power consumption with robust performance, enabling its use in compact portable and wireless gas detectors designed for methane detection in explosive atmospheres.
ADVANTAGES:
Dimensions:
| Parameter | Value | |
| General specification | ||
| Gas sampling method: | Diffusion | |
| Operating principle: | NDIR | |
| Sensor type | CH₄ | |
| Relative humidity | up to 98% (without condensation) | |
| Atmospheric pressure, kPa | 80…120 | |
| Temperature, °C | -40...+60 | |
| Warm-up time, sec | ≤ 120 | |
| Life time | ≥ 5 | |
| Level IP | without filter 20 with dust filter 54 | |
| Housing material | Polycarbonate Lexan™ | |
| Overall dimensions, mm | ⌀20.1×16.6 (w/o pins) | |
| Weight, g | 7.5 | |
| Measurement specification | ||
| Measurement range, % vol. | 0…5 0…100 | |
| Variability (+20…+25 ⁰C) | ± 0.1% vol. or ± 5% of readings (whichever is greater) | |
| Response time (T90) | without dust filter 15 with dust filter attached 25 | |
| Electrical specification | ||
| Operating supply voltage, VDC | +2.7...+5.0 +3.0…+5.0 | |
| Maximum supply voltage, VDC | +5.4 | |
| Communication interface | UART | |
| Average current, µA | 60 | |
| Marking and Standards Compliance: | ||
| IECEx (Ex Component Certificate IECEx UL 25.0093U) Ex ia op is I Ma / Ex ia op is IIC Ga according to IEC 60079-0:2017, IEC 60079-11:2011, IEC 60079-28:2015 | ||
| North America (marking on product label) C I, Div 1, Gr A, B, C, D; C I, Zone 0, AEx ia op is IIC Ga; Ex ia op is I Ma / Ex ia op is IIC Ga | ||
| ATEX (EU-Type Examination Certificate UL 25 ATEX 3487U Rev. 0) I M1 / II 1G Ex ia op is I Ma / Ex ia op is IIC Ga according to EN IEC 60079-0:2018, EN IEC 60079-0:2018/A11:2024, EN 60079-11:2012, EN 60079-28:2015, EN 60079-28:2015/A11:2024 |
