MIPEX Evaluation Kit (test set)

The MIPEX Evaluation Kit is a complete hardware and software development package for engineers integrating MIPEX NDIR gas sensors into portable, wireless, or stationary gas detection systems. The kit provides everything required to evaluate sensor performance, validate power consumption, and complete testing. The kit is available for all MIPEX sensor in series production. Sensors are supplied pre-calibrated and ATEX/IEC/CSA marked.

CONTACT FOR DETAILS Get an offer

Features

The MIPEX Evaluation Kit includes pre-calibrated sensors of the selected model and target gas, MIPEX interface board, gas adapter, MIPEX ETS software and documentation. Supported models: MIPEX-02, MIPEX-04, MIPEX-04 ppm, MIPEX-05, MIPEX-05 ppm, MIPEX-06. Supported gases: CH₄, C₃H₈, CO₂ and other hydrocarbons.

Technical SPECIFICATIONS

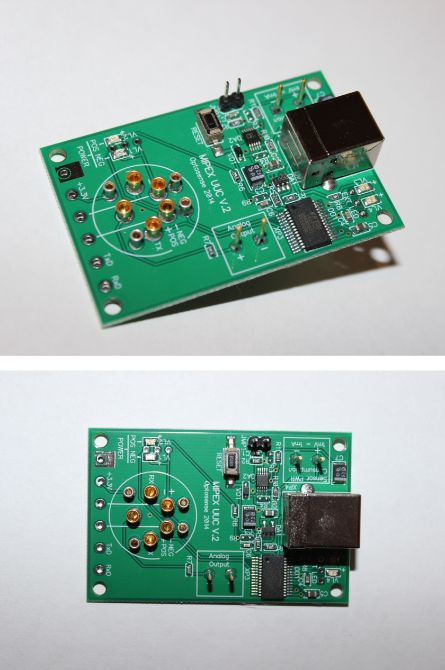

The MIPEX Evaluation Kit is designed for simplified connection and evaluation of MIPEX optical gas sensors. The interface board enables data acquisition and transmission, sensor configuration, and testing without the need for an external power supply. The software supports real-time operation, data visualization, export, and sensor calibration.

ADVANTAGES:

Plug and play setup: no external power supply required
Supports UART and RS232 interfaces for flexible integration
Real-time data analysis and logging
Visual output in both graphical and tabular formats
Compatible with MIPEX gas adapters and CTL-4 form factor


	parameter	Value
	interface	USB, UART, RS232
	Power supply	USB or 8–30 V DC
	Power consumption	up to 70 mA
	Analog output	4–20 mA, 10-bit, protected
	ADC	12-bit
	Operating Temperature	-40 to +60 °C
	Dimensions	MIPEX-02/-05/ -05 ppm/ -06 Interface Board: 61×40×3 mm MIPEX-04/ -04 ppm Interface Board: 75×42.1×1.5 mm
	software	MIPEX ETS (Windows OS supported)
	Additional features	LED indicators, initialization button, optional gas adapters
