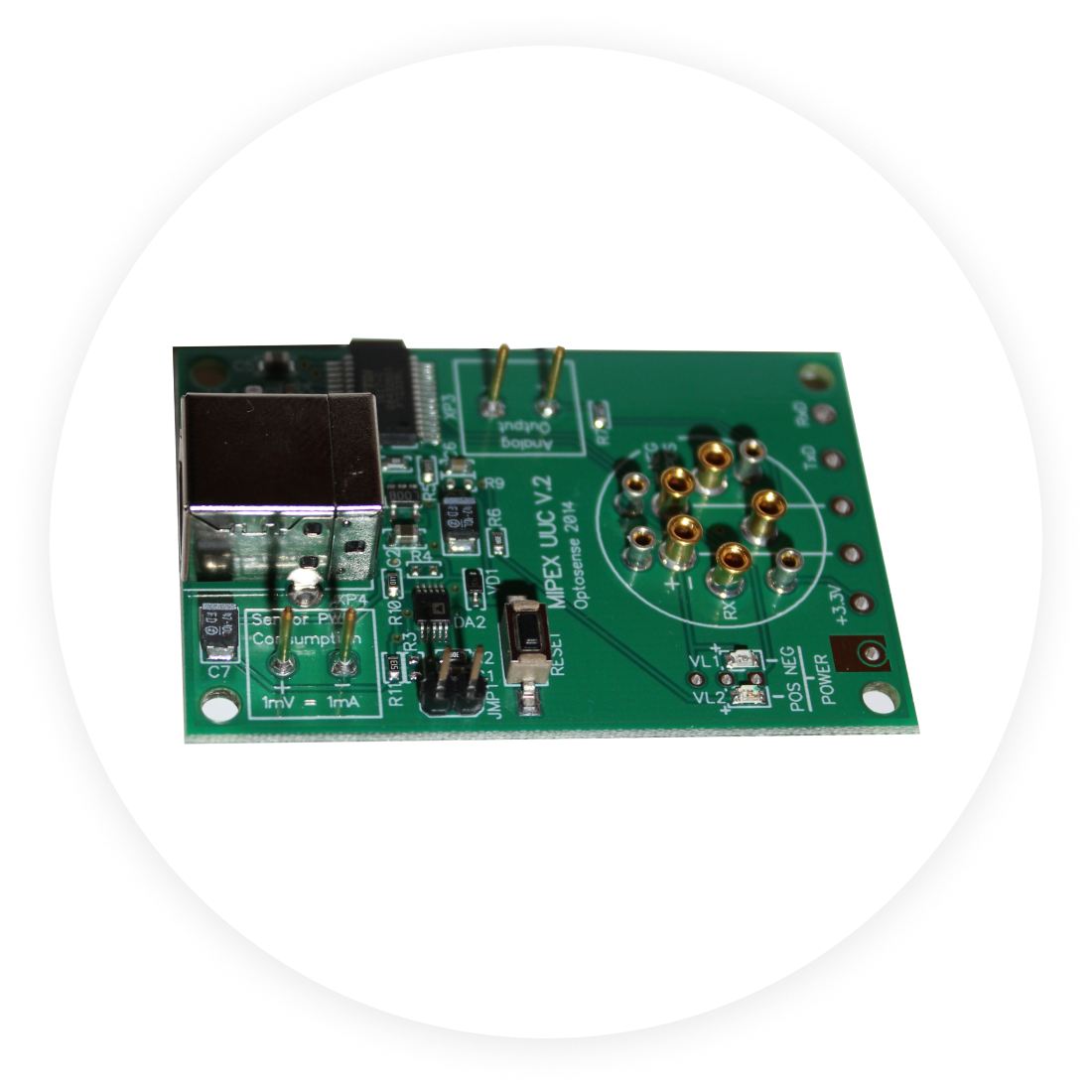

MIPEX Interface Board

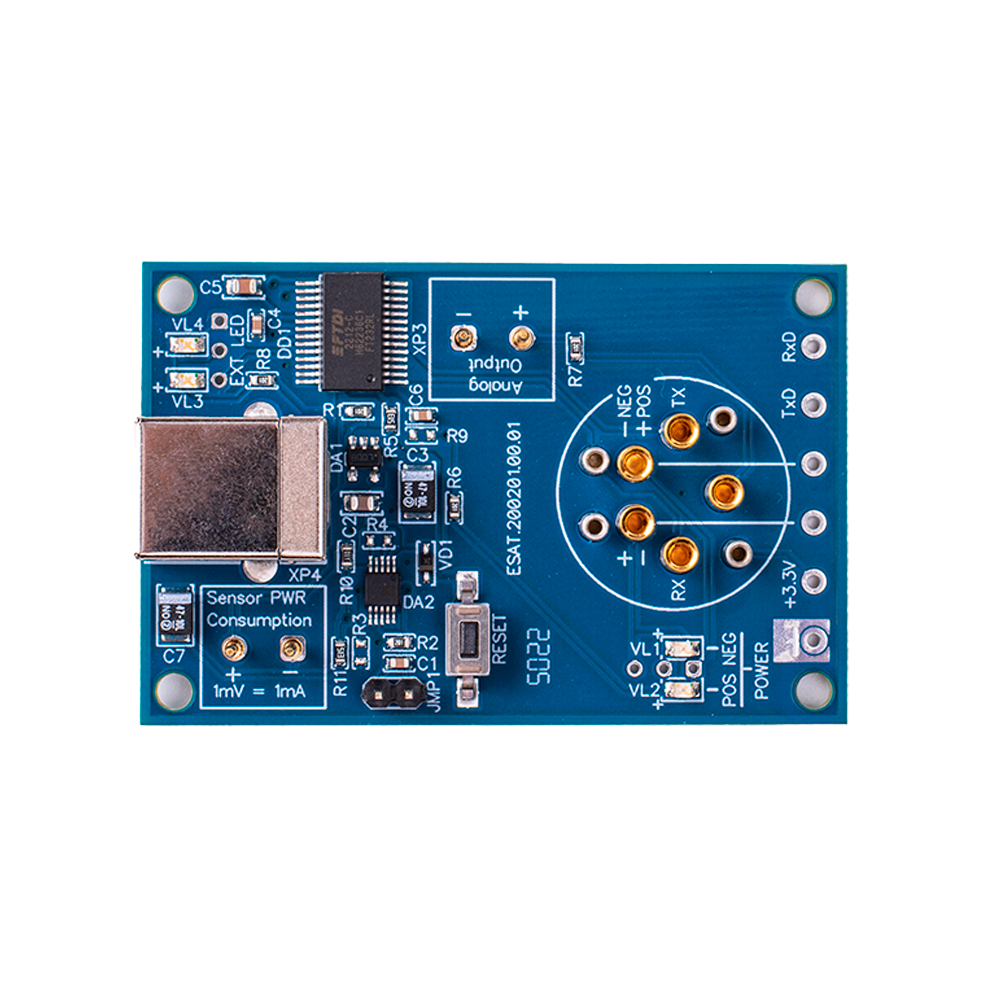

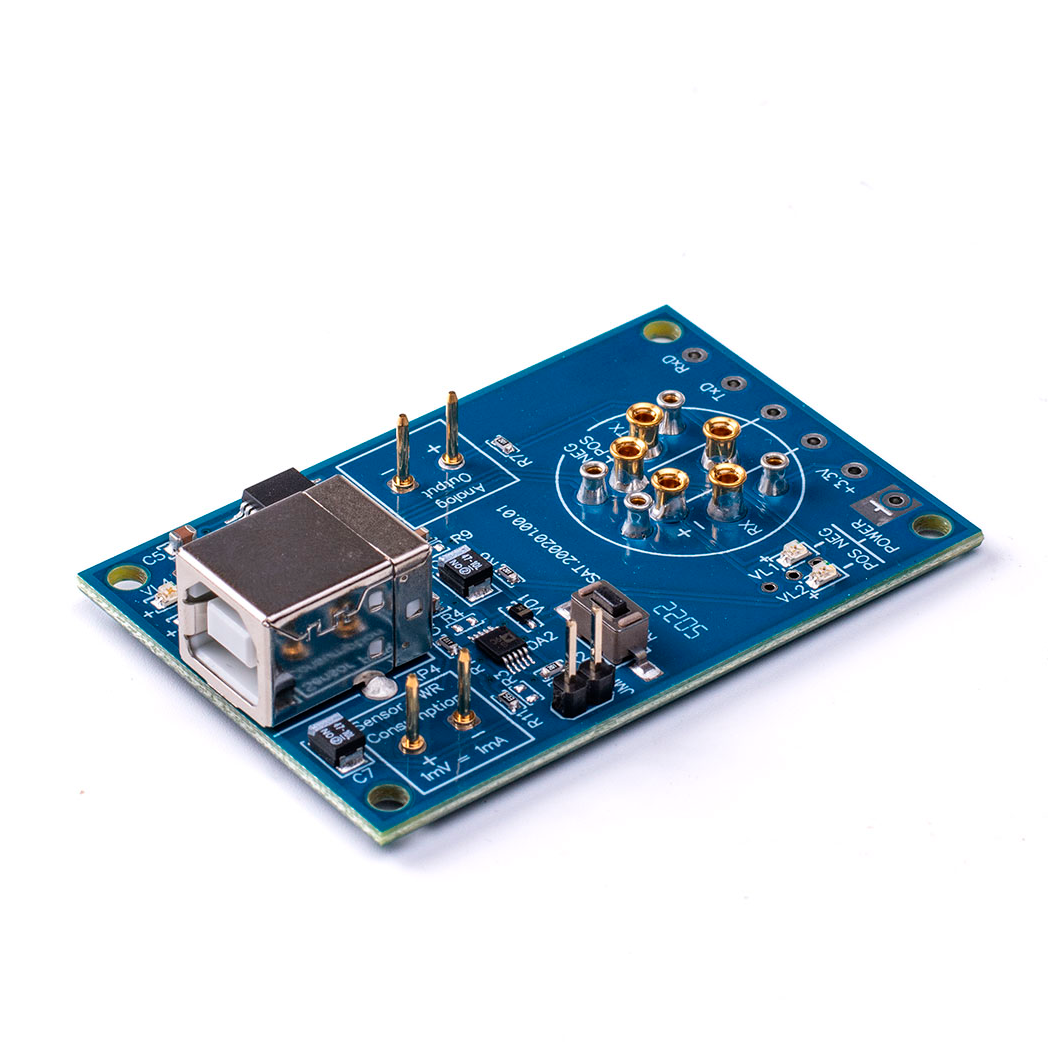

MIPEX Interface Board for MIPEX 02 and MIPEX 05

The compact and easy-to-use MIPEX Interface Board for sensor series 02 and 05 ensures stable data communication and allows current consumption monitoring. Recommended for laboratory use, R&D, and production validation processes.

Contact for details Get an offer

Features

The MIPEX Interface Board is designed to connect MIPEX-02 and MIPEX-05 NDIR gas sensors to a PC or external controller via USB or UART interfaces. It is used as part of test and calibration setups, including the MIPEX Evaluation Kit.

  • Compact dimensions for integration in space-limited environments

  • Wide operating temperature range (-40…+60 °C) suitable for environmental chamber testing

  • Suitable for building custom calibration and test setups

  • Compatible with MIPEX calibration adapters and dust filters

Technical SPECIFICATIONS

The MIPEX-02/05 Interface Board is a compact solution for testing and calibrating MIPEX-02 and MIPEX-05 sensors. It can be connected via USB or UART with external power supply. The board supports current measurement of the sensor and integrates with the MIPEX ETS software, enabling real-time data visualization, logging, and export.

ADVANTAGES:

  • Simple connection via USB or UART
  • Powered through USB or external 3.3 V source
  • Supports sensor current measurement
  • Fully compatible with MIPEX ETS software for analysis and calibration
ParameterValue
Product typeAccessory
CompatibilityMIPEX 02, MIPEX 05
ConnectionUSB; UART with external 3.3 V supply
Power SupplyUSB 5 V, up to 500 mA
Current MeasurementYes (requires external measurement unit)
Operating Temperature–40 to +60 °C
Dimensions61×40×3 mm
MountingUniversal placement
FeaturesCompatible with MIPEX ETS and EVK

Products

For gas sensors

  • MIPEX-02

    NDIR Gas Sensors

    MIPEX-02

    MIPEX-02 is an low power infrared gas sensor designed for long-term reliability in aggressive operating conditions measuring hydrocarbon.

  • MIPEX-05

    NDIR Gas Sensors

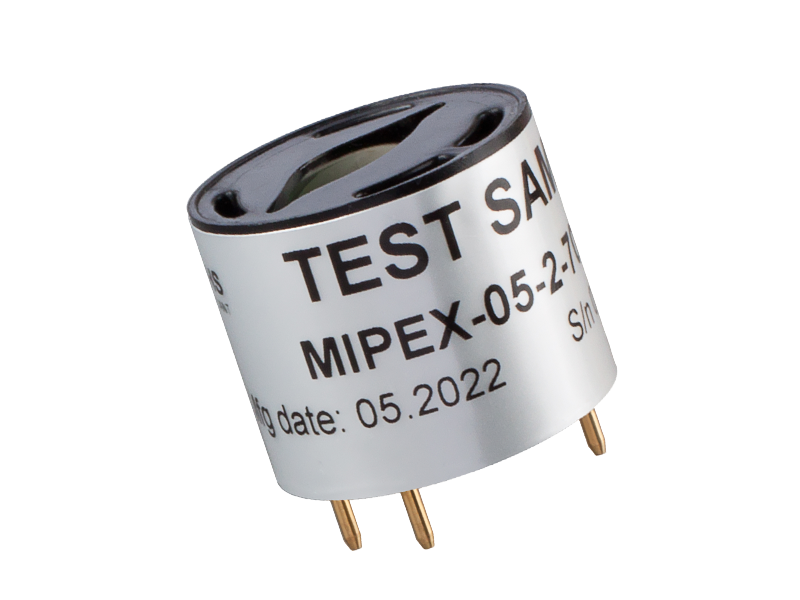

    MIPEX-05
