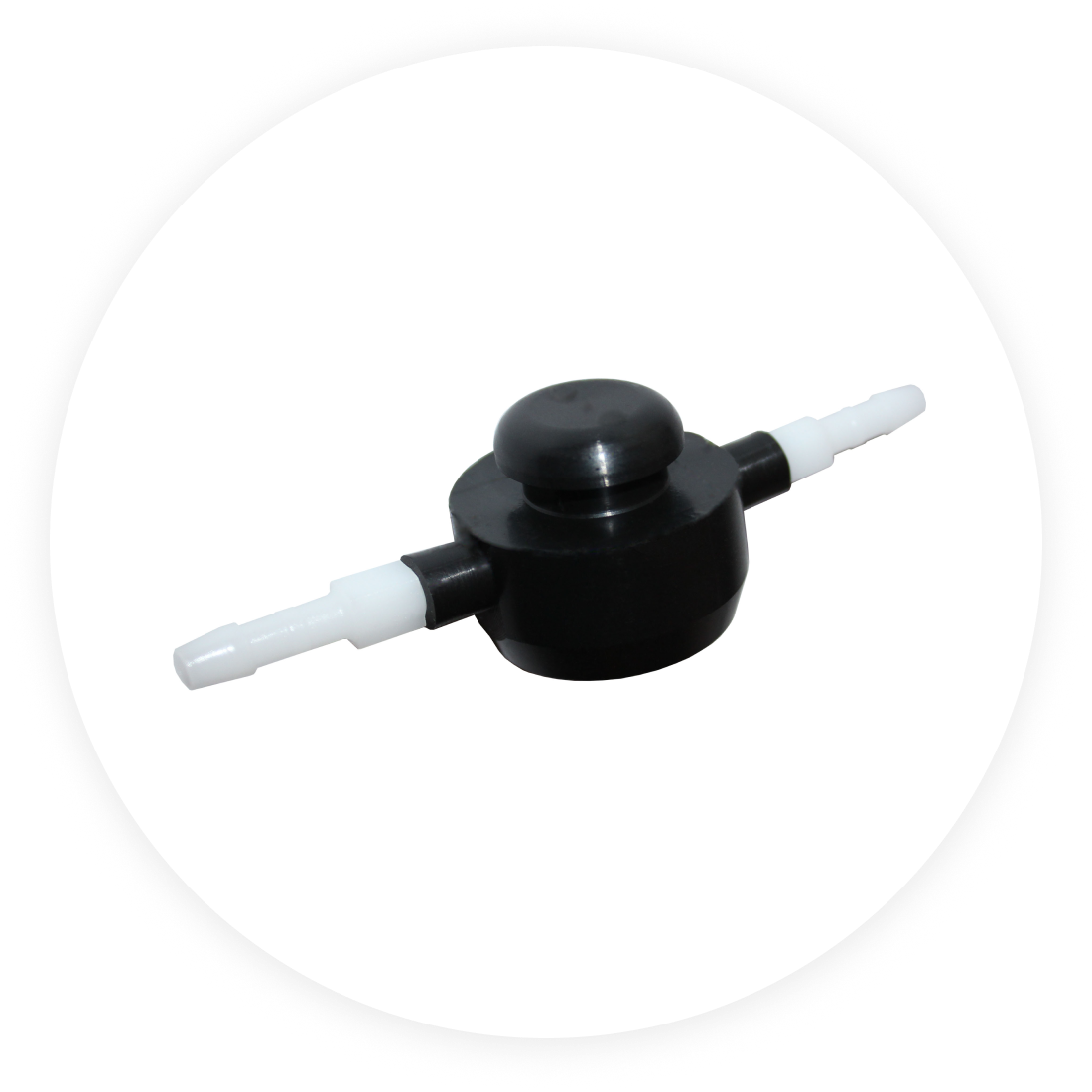

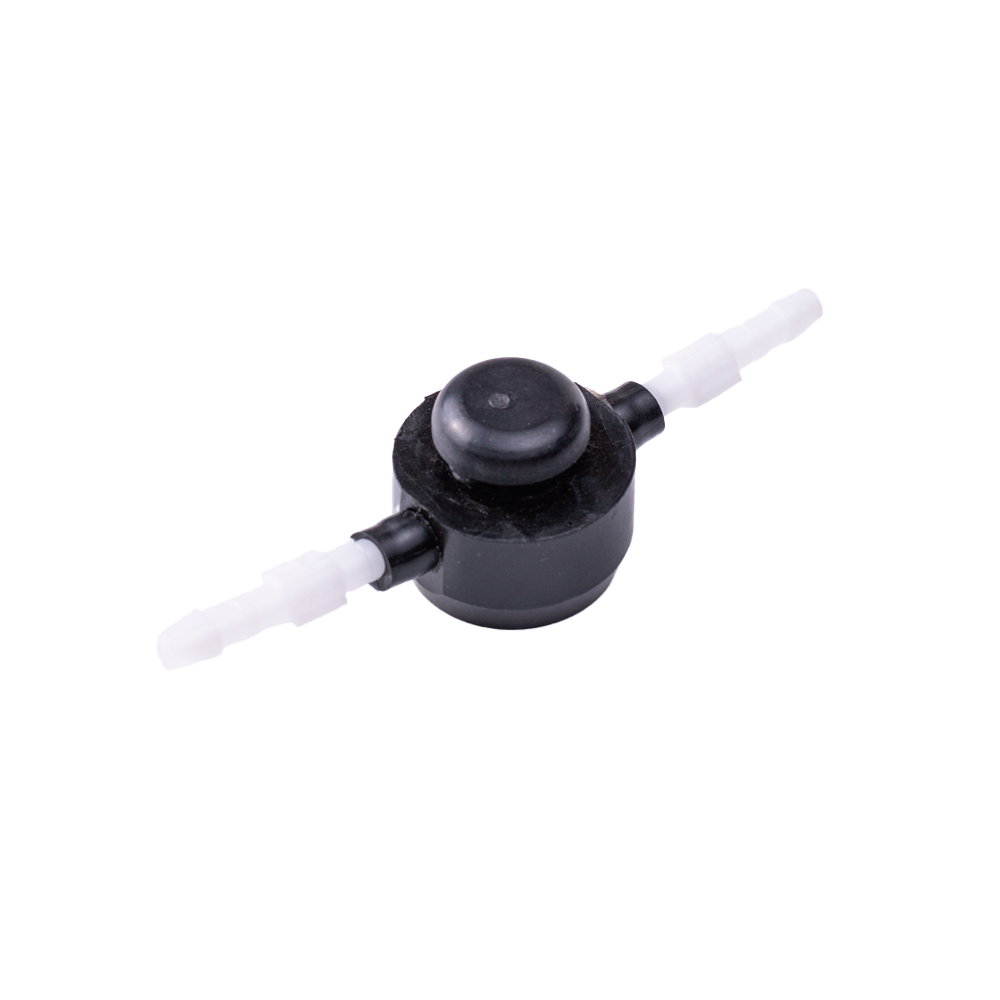

MIPEX Calibration Adapters

MIPEX Calibration Adapters for MIPEX 02, MIPEX 05, MIPEX 1H

MIPEX adapters are engineered to accommodate different sensor designs, providing reliable interface with calibration and testing equipment. Universal models are compatible with the CTL-4 form factor, making them ideal for R&D validation and quality control during manufacturing.

Contact for details Get an offer

Features

MIPEX calibration adapters are designed to ensure uniform delivery of calibration gas mixtures to MIPEX infrared sensors during calibration, verification, and functional testing. The adapters can be used in both laboratory settings and during environmental chamber testing.

  • Ensure stable and directed delivery of calibration gas to the sensor’s sensitive element

  • Improve accuracy and repeatability of testing results

  • Compatible with the MIPEX Interface Board, simplifying test bench setup and experimentation

  • Universal versions are suitable for a wide range of CTL-4 form factor sensors

Technical SPECIFICATIONS

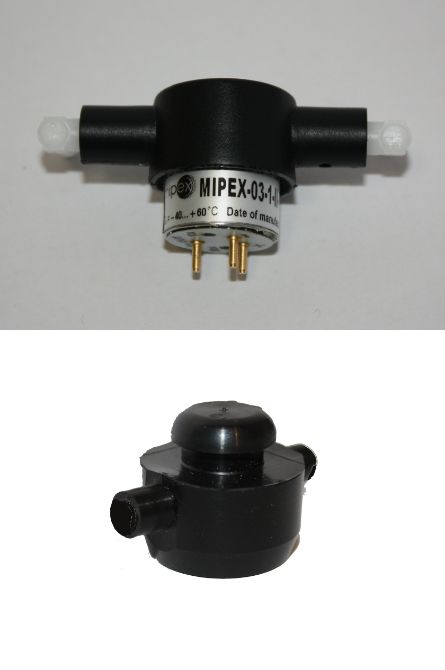

MIPEX calibration adapters are an essential part of laboratory and production testing of NDIR-based sensors. Their design ensures a tight connection for gas delivery and even exposure to the sensing element. When used with the MIPEX Interface Board, these adapters enable fast setup of a test environment that meets industrial standards. Available versions support key sensor lines, including MIPEX 02, MIPEX 05, and MIPEX 1H.

ADVANTAGES:

  • Secure mechanical fastening to the sensor housing.
  • Temperature resistance from –40 to +60 °C.
  • Suitable for environmental testing across a broad temperature range.
ParameterValue
Product typeAccessory
CompatibilityMIPEX 02, MIPEX 05, MIPEX 1H
Operating temperature–40 to +60 °C
Special featuresSuitable for Ø20 mm sensors, CTL-4 housing format

Products

For gas sensors

  • MIPEX-02

    NDIR Gas Sensors

    MIPEX-02

    MIPEX-02 is an low power infrared gas sensor designed for long-term reliability in aggressive operating conditions measuring hydrocarbon.

  • MIPEX-05

    NDIR Gas Sensors

    MIPEX-05

    MIPEX-05 is an ultra-low power infrared gas sensor designed for automatic continuous measurement of hydrocarbon concentrations in hazardous areas.

  • MIPEX-1H

    product in development

    MIPEX-1H

    MIPEX 1H is a compact infrared sensor designed for measuring methane, propane, and carbon dioxide concentrations in small-sized and portable gas detectors. With an ultra- low power consumption of just 0.2 mW, it enables long-term autonomous operation of devices.
