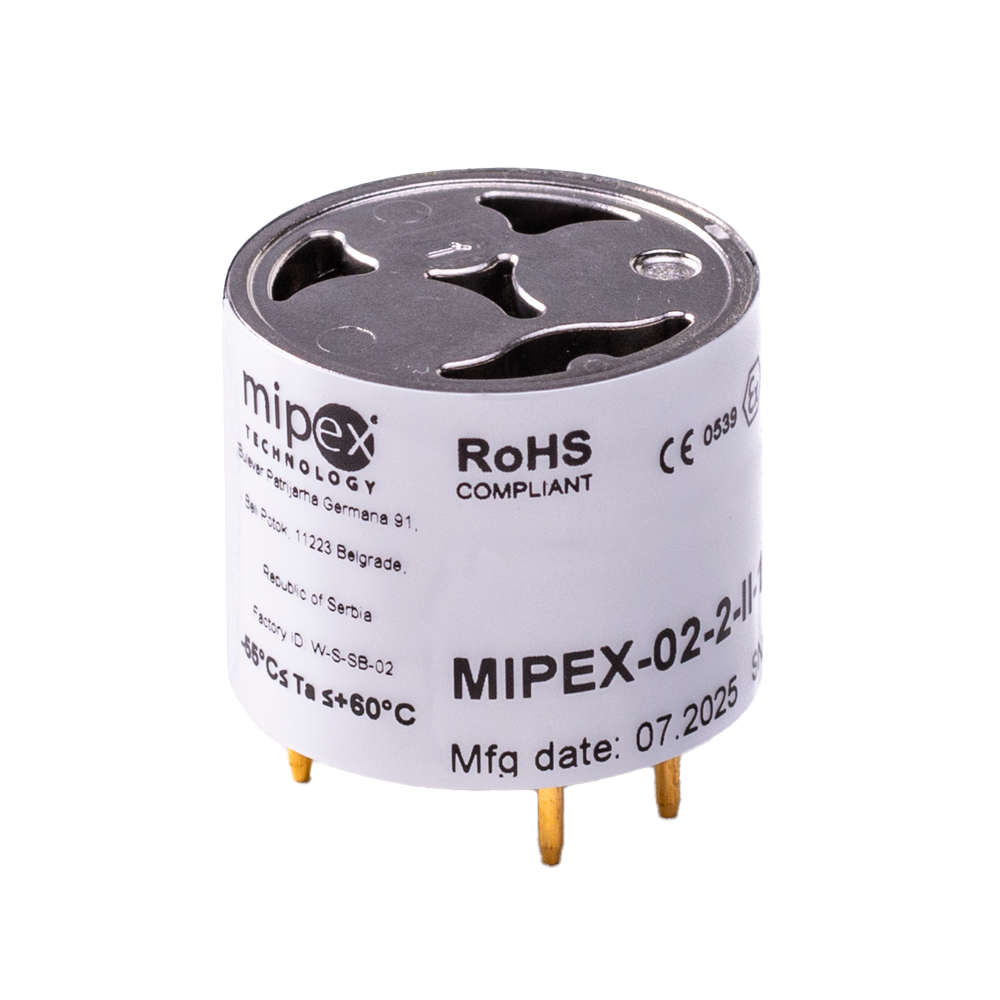

MIPEX-02 is a low-power NDIR gas sensor optimized for long-term propane (C₃H₈) detection in harsh environments. Its smart digital design ensures stable performance and low energy consumption below 1.5 mW
MIPEX-02 C₃H₈ is a fully digital NDIR gas sensor designed for continuous propane detection in explosive atmospheres. Its low-power design, robust performance in humid and dusty conditions, and explosion-proof construction make it ideal for integration into portable, wireless, and fixed gas detectors.
ADVANTAGES:
Dimensions and weight:
| Parameter | Value | |
| General specification | ||
| Gas sampling method: | Diffusion | |
| Operating principle: | NDIR | |
| Calibration gas | C₃H₈ | |
| Relative humidity | up to 98%(without condensation) | |
| Atmospheric pressure, kPa | 80…120 | |
| Temperature, °C | -40...+60 | |
| Warm-up time, sec | 120 | |
| Housing material | Stainless steel or Plastic Lexan™ | |
| Overall dimensions, mm | ⌀20.3×16.6 | |
| Weight, g | 5.5 (Plastic Lexan™) 16.6 (Stainless steel) | |
| Measurement specification | ||
| Measurement range, % vol. | 0…1.5 0…2.5 | |
| Variability (+20…+25 ⁰C) | ± 0.05% vol. or ± 5% of readings (whichever is greater) | |
| Response time (T90) | ≤ 15 | |
| Response time (T90) with dust filter applied, sec | ≤ 30 | |
| Electrical specification | ||
| Operating supply voltage, VDC | +3.0…+5.0 | |
| Communication interface | UART | |
| Average current, µA | ≤ 1100 | |
| Sensor is designed in compliance with: | ||
| I M1 / II 1G Ex ia I Ma / Ex ia IIC Ga according to EN IEC 60079-0 / EN 60079-11 | ||
| C I, Div1, Gr A,B,C,D; C I, Zone 0, AEx ia IIC Ga; Ex ia IIC Ga according to UL 913, CAN/CSA-C22.2 No.157-92 | ||
| Ex ia I Ma/Ex ia IIC Ga according to IEC 60079-0, IEC 60079-11 |
