Key parameters from the product booklet. Full data are in the Documents section below.

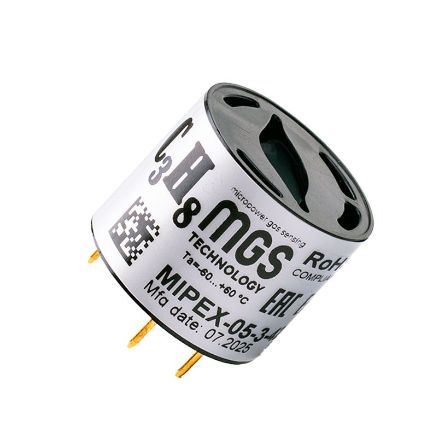

MIPEX-05 PPM [C3H8]
HIGH-SENSITIVE VERSION OF ULTRA-LOW POWER PROPANE SENSOR
MIPEX-05 ppm [C₃H₈] is a high-performance NDIR sensor in the 4th series housing with 10 ppm resolution. It is designed to detect propane at low concentrations - from just 30 ppm - making it ideal for early leak detection in hazardous areas.
Features
MIPEX-05 ppm [C₃H₈] is widely used for emission monitoring and health safety thanks to 10 ppm resolution and improved sensitivity. Due to low-power consumption and high resolution, it allows battery-powered gas detectors to work more years on a single battery and detect low concentrations.
-
ULTRA-LOW POWER CONSUMPTION
Average power consumption ≤ 0.3 mW.
-
INTEGRATED MICROCONTROLLER
Returns linearized and temperature-compensated digital output via UART interface.
-
TECHNOLOGY
The simultaneous control of ppm and LEL concentrations. Dual-wavelength technology minimizes interference from water vapor and contamination, ensuring high measurement reliability.
-
Explosion-proof design
Intrinsically safe explosion protection level “ia” in compliance with: IECEx, ATEX, UL913, CSA.
-
STANDARDS COMPLIANCE
ATEX (EU-Type Examination Certificate UL 25 ATEX 3487U Rev. 0)
I M1 / II 1G Ex ia op is I Ma / Ex ia op is IIC Ga
according to EN IEC 60079-0:2018, EN IEC 60079-0:2018/A11:2024, EN 60079-11:2012, EN 60079-28:2015, EN 60079-28:2015/A11:2024IECEx (Ex Component Certificate IECEx UL 25.0093U)
Ex ia op is I Ma / Ex ia op is IIC Ga
according to IEC 60079-0:2017, IEC 60079-11:2011, IEC 60079-28:2015North America (marking on product label)
C I, Div 1, Gr A, B, C, D;
C I, Zone 0, AEx ia op is IIC Ga;
Ex ia op is I Ma / Ex ia op is IIC Ga -
Standard series 4 size
Durable plastic housing ⌀20.1×16.6 mm for easy integration.
-
LONG-TERM MEASUREMENT STABILITY OVER 10 YEARS
Key specifications
| Parameter | Value |
|---|---|
| Target gas | C3H8 |
| Measurement range | 0…600 ppm; 0.06…2.5 % vol. |
| Resolution / accuracy (+20…+25 °C) | 10 ppm resolution; ± 30 ppm or ± 5% of reading (whichever is greater) |
| Response time T(90) | ≤ 25 s |
| Average current consumption | ≤ 150 µA |
| Average power consumption | ≤0.3 mW |
| Supply voltage | +2.7…+5.0 V |
| Operating temperature | -40…+60 °C |
| Humidity tolerance | Up to 98 % (without condensation) |
| Dimensions | ⌀20.1×16.6 mm |
| Weight | 7.5 g |
How to order
- Minimum order: from 1 sensor.
- Lead time: depends on stock availability, typically from 1 to 8 weeks.
- Samples: free of charge when a project is opened under an agreement on specific conditions; otherwise paid as part of a quotation, or through the MIPEX Evaluation Kit.
