MIPEX-1F [C3H8]

optical measurement module for stationary gas analysis systems

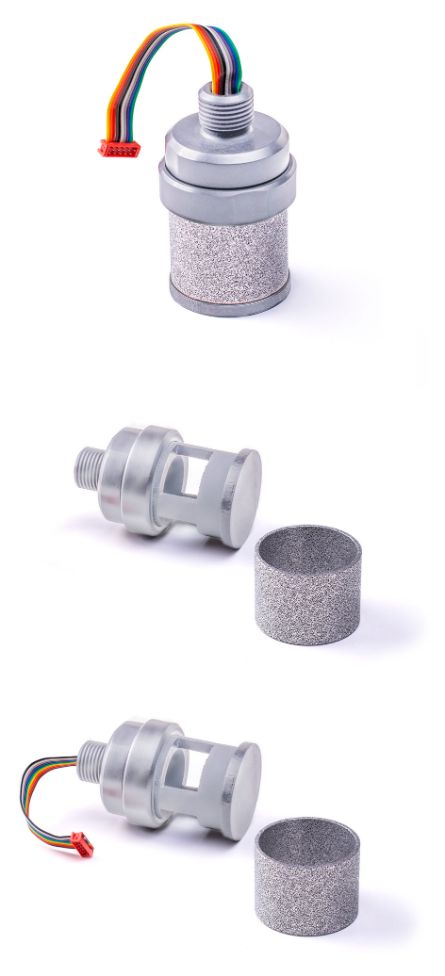

MIPEX-1F [C₃H₈] is a ready-to-integrate optical sensor for fixed gas detection systems, designed for continuous propane measurement by diffusion in explosive atmospheres across a wide temperature range.

Presentation in PDF

Contact for details Get an offer

Features

MIPEX-1F [C₃H₈] is a optical gas sensor optimized for fixed propane detection in explosive atmospheres. Designed for diffusion-based measurement, it ensures stable performance in extreme temperatures and high humidity.

An optional heating function prevents condensation on optical surfaces, enabling reliable operation even in harsh humid or subzero environments.

  • LOW power consumption

    Average power consumption ≤ 2 mW.

  • INTEGRATED MICROCONTROLLER

    Returns linearized and temperature-compensated digital output via UART interface (optional RS-485 (MODBUS)).

  • Technology

    Non-dispersive infrared (NDIR) sensing founded on selective absorption of infrared light, utilizing a four-channel (dual-beam, dual-wavelength) LED-based method.

  • EXPLOSION PROOF DESIGN

    Intrinsically safe explosion protection level “ia” in compliance with: IECEx, ATEX, UL913, CSA.

  • FORM FACTOR

    Overall dimensions: Ø50×86mm.
    Housing material: Stainless steel

  • LONG-TERM MEASUREMENT STABILITY OVER 10 YEARS
